| ITEMS | SPECIFICATION |
| Control method | Press key+PLC |
| Convey or motor | 1P AC220V,60W |
| Convey or speed | 0-1800mm/min |
| PCB size | 30-350mm(w) |
| Flux capacity | 6L |
| Pre-heating zone | 1800mm,room temperature--250°C |
| Solder pot temperature | 1KW*10PCS room temperature---300°C |
| Solder pot capacity | 350KG |
| Wave motor | 3P AC220V,0.18KW*2PCS |
| Finger cleaning pump | 1P AC220V 6W |
| Convey or direction | L→R (R→L optional) |
| Convey or angle | 3—6 º |
| Flux pressure | 3—5BAR |
| Power supply | AC380V 50HZ |
| Normal working power/ | 6KW/21KW |
| Outside dimension | 4300(L)*1400(W)*1700(H) |
| Dimension | 3400(L)*1400(W)*1700(H) |
| Net weight | 1000KG |
Features:
l Efficient,energy-saving,lead-free,environment-friendly,safe,andbrand-newdesigh,simpleoreration,
convenient maintenance

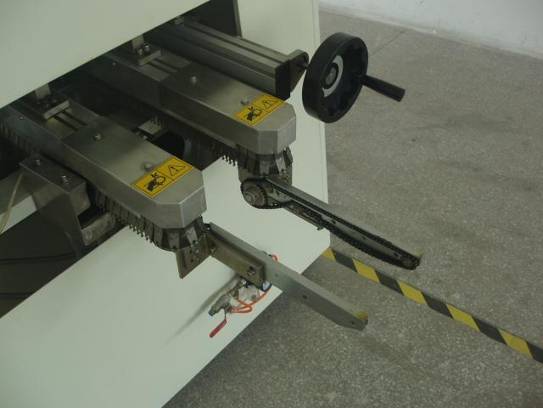

l Automatic conveying power system, with non-level frequency conversing speed adjustment and auto synchronous board feeding functions.
l Flux spray system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and Plc control ,accurate and reliable
l Remoto infrared ceramic heating pipes are adopted in the preheating system which ensures good heat preservation effect ,high heating up speed and even temperature
l Special alloy transportation chain claws , non-stick tin,reinforced, and ensure the quality of welding PCB board
l Tin stoveadopts imported high frequency stepess conversion motor independent control,stable performance
l Lead-free solder furnace with independent design ,environment protection and safety , easy to clean
l Tin heating furnace uses high-speed PID and 2-stept independent outer –heating control ,warm-up quickly and eliminates the flaws of stove tin explodes
l With time controller ,can preset switch functions ,tin stove machine heating picks up in 90minutes
l Reasonable design of environment protection,and automatic washing claw ,ensure the cleaness of claws
l The design is reasonable and safe with sensitive fault alarm system ,to ensure the stable performance the safety of operators
